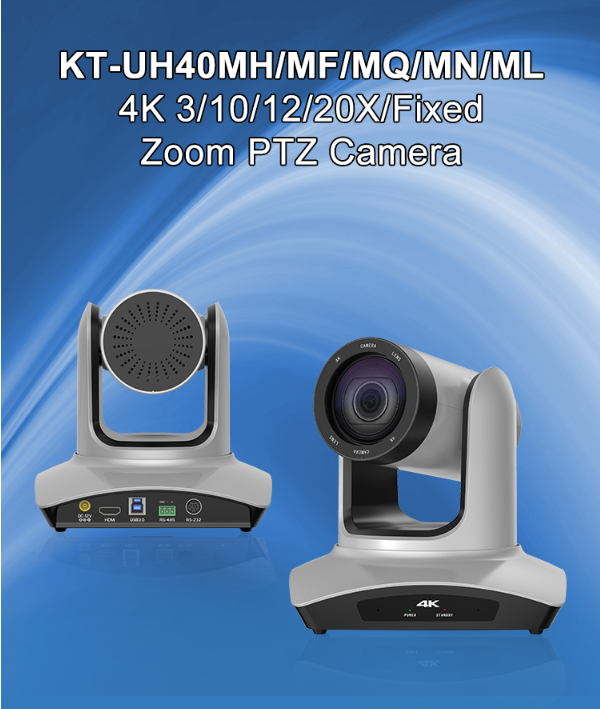

KT-UH40MN / UH40MQ
Sur commande

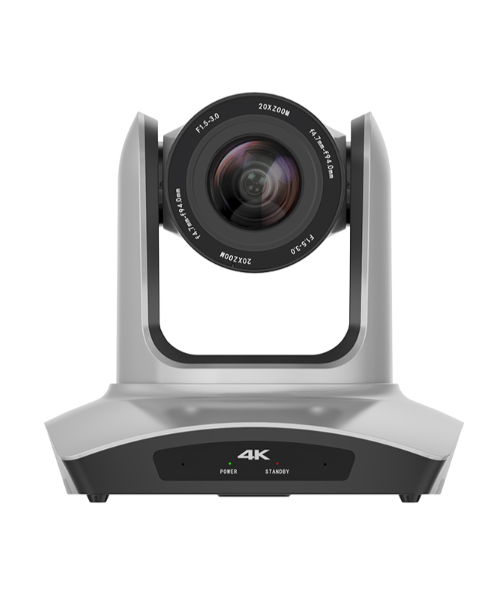

La KT-UH40MN / UH40MQ est une caméra PTZ 4K compacte et performante, équipée d’un capteur Sony 1/2.8″ pour une image nette et lumineuse. Elle offre un zoom optique jusqu’à 10×, une double sortie HDMI et USB 3.0, ainsi qu’un contrôle à distance via VISCA / PELCO-D / PELCO-P. Idéale pour les conférences, le streaming, l’enseignement ou la production vidéo professionnelle.
|
Camera |
|
|
Video Format |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
|
Image Sensor |
SONY 1/2.8 " CMOS |
|
Pixels |
8.5 Megapixels , Effective Pixels 8.29 Megapixels |
|
Scanning Method |
Line by Line |
|
Lens Focal Length |
UH40ML: Fixed focus lens UH40MN: 3X Optical Zoom, f=3.2mm(W)~12.8mm(T), F1.8~F3.6 UH40MQ: 10X Optical Zoom, f=4.32mm(W)~40.9mm(T) UH40MF: 12X Optical Zoom, f=4.1mm(W)~49.2mm(T), F1.8~F2.68 UH40MH: 20X Optical Zoom, f=5.2mm(W)~104mm(T), F1.55~F3.13 |
|
Horizontal Field of View |
UH40ML：94° UH40MN：96.5°(W)~29.3°(T) UH40MQ：67.5°(W)~7.6°(T) UH40MF：72.5°(W)~6.57°(T) UH40MH：58.7°(W)~3.2°(T) |
|
Vertical Field of View |
UH40ML：62° UH40MF：42.06°(W)~3.76°(T) UH40MH：32.2°(W)~1.8°(T) |
|
Focus Method |
UH40MN/MQ/40MF/40MH:Automatic / Manual |
|
Shutter |
1/25s ~ 1/10000s |
|
Minimum Illumination |
0.1 Lux @ (F1.8， AGC ON) |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
Signal-to-Noise Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Range |
±170° |
|
Tilt Range |
-30°~+90° |
|
Pan Speed |
1°~60°/s |
|
Tilt Speed |
1°~60°/s |
|
Number of Preset Positions |
The remote control can be set to 9, and the keyboard can be set to up to 255 preset positions. |
|
Preset Position Accuracy |
0.1°±10% |
|
Flip |
Support |
|
AI |
|
|
AI Tracking |
Support |
|
Auto Framing |
Support |
|
Tracking Size |
Support |
|
Tracking Sensitivity |
Support |
|
AI Guard Position |
Support |
|
USB |
|
|
Protocol |
UVC 1.1 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Encoding Format |
YUY2, MJPEG |
|
Resolution |
3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Video Frame Rate |
Up to 30 |
|
UVC PTZ control |
Support |
|
Input and Output Interface |
|
|
HDMI Interface |
1 way, HDMI: version 1.4 |
|
USB Interface |
1 way, USB3.0, Type-B socket |
|
Communication Interface |
1 channel, RS232 IN: 8-pin small DIN, maximum distance 30 meters, VISCA/Pelco-D/Pelco-P protocol 1 channel, RS485 IN: 3-core Phoenix port, maximum distance 1200 meters, VISCA/Pelco-D/Pelco-P protocol |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
Others |
|
|
Input voltage |
DC 12V |
|
Input Current |
Maximum 0.8A |
|
Power consumption |
Maximum 10W |
|
Operating Temperature |
0~40℃ |
|
Stored Temperature |
-10~60℃ |
|
Color |
Silver |
|
Size |
(width) 180* (depth) 180* (height) 175mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
